Energy Saving Environmental Protection Large Output 85-730 t / h Cement Raw Meal Vertical Mill
【Product Description】
HVM raw meal vertical mill is an honorary product launched by our company to solve the technical problem of high output of raw meal vertical mill in the process of cement production. Vertical mill is a mature technology. Grinding and drying equipment is a combination of drying, grinding and powder selection used in cement chemical industry, coal, electric power, etc., and has become a mainstream product in the cement grinding industry.
【Structural Principle】
It is mainly composed of powder separator, grinding roller device, grinding disc device, pressurizing device, reducer, motor, shell and so on. The separator is a high-efficiency and energy-saving powder sorting device. The grinding roller is the part used to grind and pulverize the material. The grinding disc is fixed on the output shaft of the reducer, which is the place where the grinding roller rolls the material. The pressure device is The part that provides the grinding force to the grinding roller, providing enough pressure to the grinding roller to crush the material.
Specifications And Technical Parameters Of HVM Raw Vertical Mill
| Model | HVM2500 | HVM2800 | HVM3400 | HVM3700 | HVM4200 | HVM4500 | HVM4800 | HVM5100 | HVM5600 |
| grinding table median diameter(mm) | 2500 | 2800 | 3400 | 3700 | 4200 | 4500 | 4800 | 5100 | 5600 |
| Capacity(t/h) | 85-100 | 130-160 | 190-240 | 240-300 | 320-400 | 400-500 | 440-550 | 550-670 | 600-730 |
| Raw Material Moisture | ＜10% |
| Raw Meal Fineness | R0.08＜12% | R0.08＜14% |
| Raw Meal Moistrue | ≤1% |
| Main Motor Power(kW) | 800/900 | 1120/1250 | 1800/2000 | 2500/2800 | 3150/3350 | 3800/4200 | 4200/4500 | 5000/5400 | 5600/6000 |
| Illustrate | Re:Raw materials bond index≤13kWh/t | |
【Technical advantages】
(1) Low energy consumption
The grinding roller is used to directly crush and grind the material on the grinding disc, which has low energy consumption and saves energy consumption by 40% to 50% compared with the ball milling system.
(2) Less wear
Since the grinding roller does not directly contact the grinding disc during work, and the grinding roller and the lining plate are made of wear-resistant materials, the service life is long and the wear is less.
(3) Easy maintenance and low operating cost
Maintenance operations are very convenient;
(4) Stable product quality
The product quality is stable; the product particle shape is uniform, the particle size distribution is narrow, the fluidity is good, and the product adaptability is strong.
(5) High reliability
Reliable sealing and excellent explosion suppression performance.
(6) Environmental protection
The whole system of HVM vertical mill has small vibration and low noise; no dust spillage
【After-sale service】
We have a long-term service in the production line, good technology, responsible after-sales service team. All members have more than 5 years of experience in the industry, and can provide customers with timely, efficient, comprehensive and scientific after-sales service. It can provide customers with the whole process of after-sales service from engineering construction, production line equipment installation, production line debugging until the production line reaches the standard and production capacity, solves various incurable diseases encountered by customers, and provides thoughtful, meticulous and perfect after-sales service.
Product Tags:
|
|

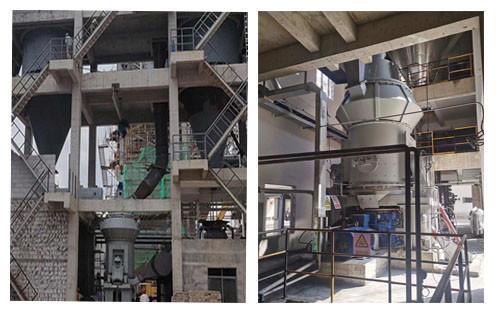

OEM Meal Vertical Raw Mill Cement Plant 4800mm 5100mm Images
|
